PRODUCTS

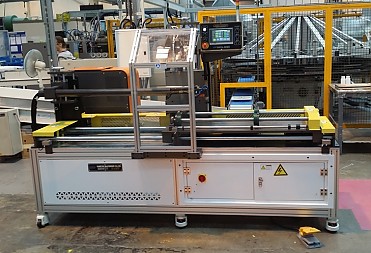

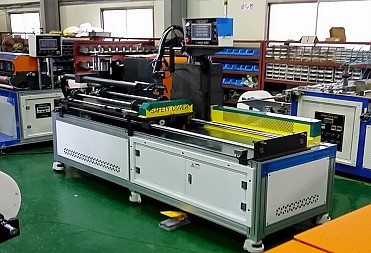

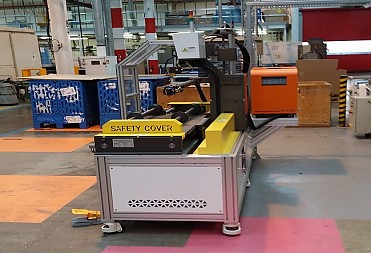

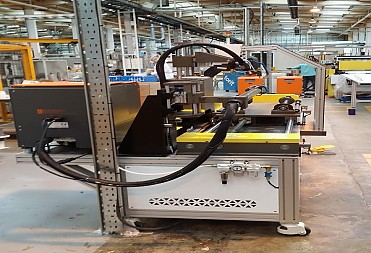

Hotmelt Dispenser

Hotmelt dispending inside and outside circular filters

Specification

Use Hotmelt Dispensing inside & outside Circular Filters
Control System PLC + Touch Screen
Media Synthetic Media, etc.
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Filter Length 200-1200 mm
Available Filter Diameters 200-500 mm
Air Pressure 6 kgf/㎠ (85 PSI)
Index Driver Rotary Cam Type
Model No. Available Media Width Operation Speed Input Power Hotmelt Applicator

Tank

Volume

Auto Gun

Quantity

Temperature
SHD0900NNS 850 mm 2-4 pcs/min 5.6 kW 20 kg 2 unit 30-230 ℃

Features

  • Used for High-Capacity Air Filters
  • 2 Line System
  • Lead Screw Type.
