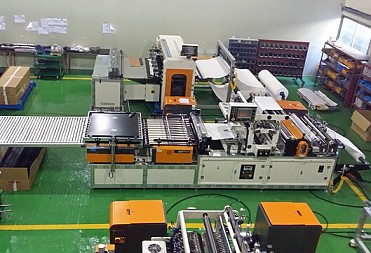

High Speed Rotary Pleat Machine

Pleating & Hotmelt dispensing on paper/cellulose, non-woven, etc. with scoring roller
image view

Specification

Use Pleating, Forming, & Hotmelt Dispensing on various Filter Materials (Pleat Lock, Embossing)
Control System PLC + Touch Screen
Media Cellulose/Paper, Non-woven, & Synthetic Fibers
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set

Model No.



Available Media

Width



 Available Pleat Height Operation Speed
Input Power		 Hotmelt Applicator

Tank

Volume

Auto Gun

Quantity

 Temperature
SRH0400NNS 350 mm 20-100 mm 100 m/min 18.9 kW 20 kg * 2 4 unit 30-230 ℃
SRH0500NNS 450 mm 20-100 mm 100 m/min 20.7 kW 30 kg * 2 4 unit 30-230 ℃

Features

  • PLC & Touch Screen Control

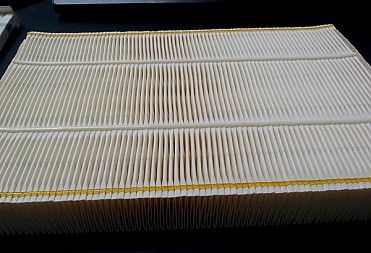

  • Scoring Roller Replacement Type: Straight, Pleat Loc, Embossing Filter Pack Production
  • Servo Hotmelt Modules: Diagonal Hotmelt Dispensing

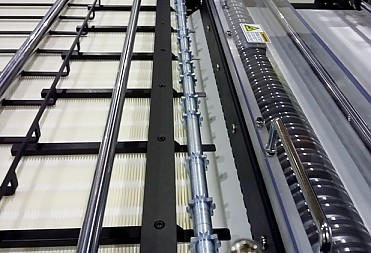

  • High-Speed Pleating by Star Roller
  • Outlet Servo Conveyor System
  • Auto Marking System
  • Media Heating Unit
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake and Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4 EA Included
  • Outlet Cooling System
  • Pre & Post Heaters with PID Controller
  • Reliable After Treatment: Teflon, Anodizing, Chrome coating, QPQ Heat Treatment, etc.
  • Auto Crosscutting System: Option
  • Adjustable Pleat Pitch for Slitting Machine: Option
  • Scrap Winder: Option
