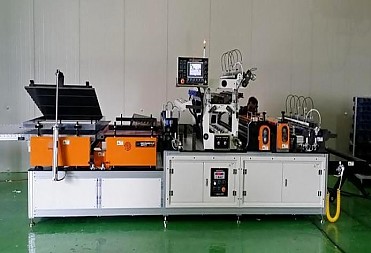

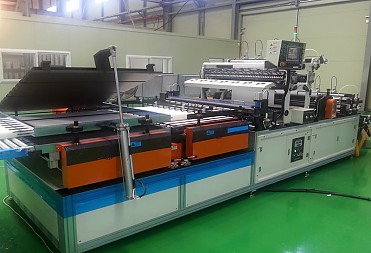

Multi-Mini Pleat Machine
A combined system of servo scoring roller system (straight), scoring roller system replacements (pleat lock, Embossing), & Hotmelt applicator for pleating & Hotmelt dispensing on synthetic fibers, etc.Specification
| Use | Pleating, Forming (Pleat Lock, Embossing), & Hotmelt Dispensing on various Filter Materials |

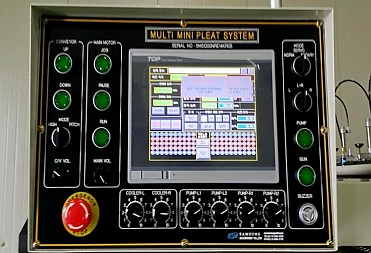

| Control System | PLC + Touch Screen |
| Media | Glass Fibers |
| Electricity | 380V/220V* 60(50)HZ* 3P(4P) |
| Air Pressure | 6 kgf/㎠ |
| Slitting Cutter Quantity | 4 set |
| Model No. | Available Media Width | Available Pleat Height | Operation Speed |
Input Power |
Hotmelt Applicator | ||
Tank Volume |
Auto Gun Quantity |
Temperature | |||||
| SMM1300NNS | 1250 mm | Mini: 22-100 mm Rotary: 18-50 mm |
Mini: 18 m/min Rotary: 50 m/min |
52.2 kW | 70kg * 2 | 100 unit | 30-230 ℃ |
Features
