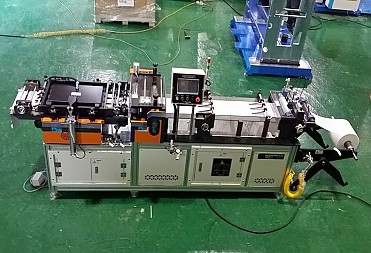

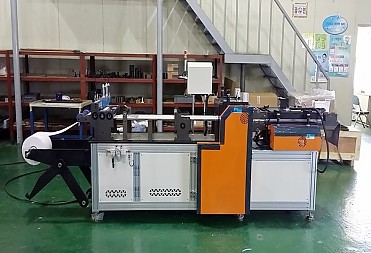

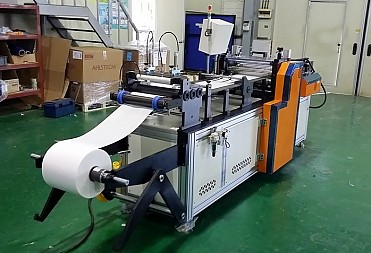

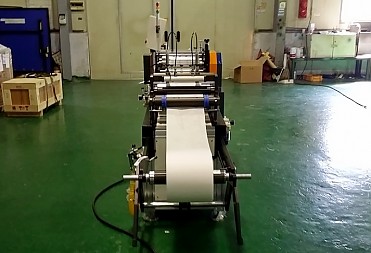

Servo Rotary Pleat Machine

Rotary typed pleating of filter materials applicable for pleat pitch adjustment by servo scoring roller

Specification

Use Pleating & Forming all sorts of Filter Materials (Pleat Lock)
Control System PLC + Touch Screen
Media Cellulose
Electricity 380V/220V *60(50)HZ *3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set
Model No.

Available Media

Width

Available Pleat

Height

Operation Speed Input Power
SRS0400LNS 350 mm 15-40 mm 40 m/min 13.65 kW
SRS0500NNS 450 mm 17-50 mm 40 m/min 13.65 kW
SRS0700NNS 650 mm 18-80 mm 40 m/min 29.80 kW
SRS1000NNS 950 mm 20-80 mm 27 m/min 29.80 kW
SRS1300NNS 1250 mm 25-80 mm 27 m/min 35.80 kW

Features

  • PLC & Touch Screen Control
  • Servo Scoring Roller System: Adjustable Pleat Heights
  • Straight/Pleat Lock/Embossing Filter Pack Production
  • Pleating M-Type media with different heights
  • Auto Marking System
  • Pre & Post Heater
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake & Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4 EA Included
  • Pre & Post Heaters with PID Controller
  • Reliable After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ Heat Treatment, etc.
  • Adjustable Pleat Pitch for Slitting Machine: Option
  • Scrap Winder: Option
