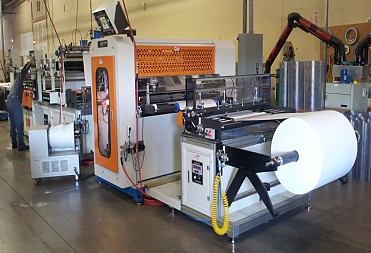

Synthetic Media Pleat System

Knife typed pleating & Hotmelt dispensing on all sorts of synthetic fiber materials for filter pack production
image view

Specification

Use Pleating & Hotmelt Dispensing on various Filter Materials
Control System PLC + Touch Screen
Media Cellulose/Paper, Non-woven, Synthetic Fibers, etc.
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set

Model No.
Available Media Width
Available
Pleat Height		 Operation Speed

Input

Power

 Hotmelt Applicator

Tank

Volume

Auto Gun

Quantity

 Temperature
SSS0700LNS 650 mm Knife: 7-50 mm
Mini: 15-100 mm 		Knife: 120-150 pleats/min
Mini: 15-18 m/min		 44.25 kW 70 kg * 2 52 unit 30-230 ℃
SSS0700HNS 650 mm Knife: 15-100 mm
Mini: 15-100 mm		 Knife: 100-120 pleats/min
Mini: 15-18 m/min		 44.25 kW
SSS1000LNS 950 mm Knife: 7-50 mm
Mini: 15-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min		 49.25 kW 70 kg * 2 76 unit 30-230 ℃
SSS1000HNS 950 mm Knife: 15-100 mm
Mini: 15-100 mm		 Knife: 100-120 pleats/min
Mini: 15-18 m/min		 49.25 kW
SSS1300LNS 1250 mm Knife: 7-50 mm
Mini: 15-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min		 62.25 kW 70 kg * 2 100 unit 30-230 ℃
SSS1300HNS 1250 mm Knife: 15-100 mm
Mini: 15-100 mm		 Knife: 100-120 pleats/min
Mini: 15-18 m/min		 62.25 kW
SSS1550LNS 1500 mm Knife: 10-50 mm
Mini: 15-100 mm		 Knife: 100 pleats/min
Mini: 15-18 m/min		 67.65 kW 70 kg * 2 120 unit 30-230 ℃
SSS1550HNS 1500 mm Knife: 15-100 mm
Mini: 15-100 mm		 Knife: 90 pleats/min
Mini: 15-18 m/min		 67.65 kW

Features

  • PLC & Touch Screen Control
  • Combination of Knife Pleat Machine & Hotmelt Applicator
  • 2 Servo System: Adjustable Pleat & Heater Heights
  • Free Adjustments of Hotmelt Beads Pattern/Position/Length
  • Ion Blowers against Anti-Static
  • Pre & Post Heater
  • Pre & Post Heaters with PID Controller
  • 3 Divisions of Temperature Control: Fine Adjustment of Pleat Conditions
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake and Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4EA Included
  • Individual Hotmelt Module On/Off Control
  • Outlet Cooling System
  • Outlet Servo Conveyor + Roller Conveyor (3m)
  • Adjustable Pleat Pitch (PPI): 4-8 PPI
  • Reliable After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ Heat Treatment, etc.
  • Remote A/S (After-Service) through Internet
  • Auto Crosscutting System: Option
  • Free Adjustment of Pleat Pitch for Slitting Machine: Option
  • Scrap Winder: Optional
