PRODUCTS

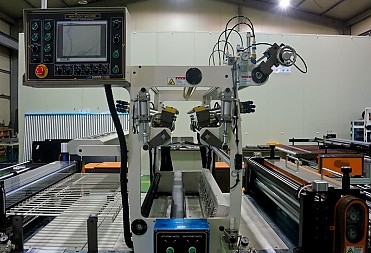

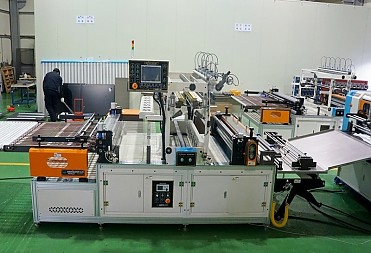

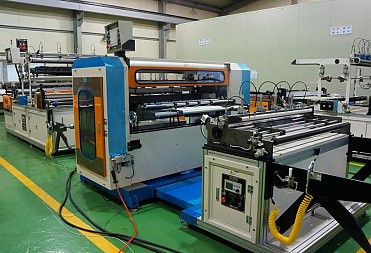

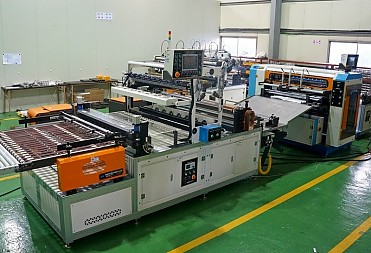

Combination Media Pleat System

Combined system of pleating knife, servo scoring roller, & Hotmelt applicator for filter pack productions of various filter materials. *Mini pleat machine & knife type pleat machine can be used individually.
image view

Specification

Use Pleating & Hotmelt Dispensing on various Filter Materials
Control System PLC + Touch Screen
Medium Cellulose/Paper, Non-woven, Synthetic Fibers, Glass Fibers, etc.
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set
Model No.
Available Media Width		 Available Pleat Height Operation Speed Input Power Hotmelt Applicator

Tank

Volume

Auto Gun

Quantity

 Temperature
SCS0700LNS 650 mm Knife: 7-50 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min 		45.45 kW 70 kg * 2 52 unit 30-230 ℃
SCS0700HNS 650 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 100-120 pleats/min
Mini: 15-18 m/min 		45.45 kW
SCS1000LNS 950 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min 		51.25 kW 70 kg * 2 76 unit 30-230 ℃
SCS1000HNS 950 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min 		51.25 kW
SCS1300LNS 1250 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min 		65.25 kW 70 kg * 2 100 unit 30-230 ℃
SCS1300HNS 1250 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  22-100 mm		 Knife: 120-150 pleats/min
Mini: 15-18 m/min 		65.25 kW
SCS1550LNS 1500 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  26-100 mm		 Knife: 90 pleats/min
Mini: 15-18 m/min 		70.65 kW 70 kg * 2 120 unit 30-230 ℃
SCS1550HNS 1500 mm Knife: 15-100 mm
Mini1: 15-100 mm
Mini2:  26-100 mm		 Knife: 90 pleats/min
Mini: 15-18 m/min 		70.65 kW

Features

  • PLC & Touch Screen Control
  • Combined System of Mini Pleat Machine & Knife Type Pleat Machine (can be separable)
  • Pleating most types of media for industrial & car filters. Plus, Hotmelting.
  • 2 Servo System: Adjustable Pleat & Heater Height
  • Outlet Conveyor Speed by Servo System
  • Anti Media Cut System for Glass Fiber Pleating
  • Free Adjustments of Hotmelt Beads Pattern/Position/Length
  • Pre & Post Heater
  • Pre & Post Heaters with PID Controller
  • 3 Divisions of Temperature Control: Fine Adjustment of Pleat Conditions
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake and Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4 EA Included & 8 EA for Slitting Machine
  • Individual Hotmelt Module On/Off Control
  • Outlet Cooling System
  • Adjustable Pleat Pitch (PPI): 3-6mm
  • Outlet Roller Conveyor (3m)
  • Reliable After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ Heat Treatment, etc.
  • Feeding Roller Height Control
  • Outlet Conveyor Height Control
  • Remote A/S (After-Service) through Internet
  • Auto Crosscutting System: Option
  • Free Adjustment of Pleat Pitch for Slitting Machine: Option
  • Scrap Winder: Option
